Raven Trekker


39mm case design

The new Trekker will feature a 39mm case design at the bezel. The dial and crystal will be the same size as the previous Trekker, it will be the case and bezel that are reduced by 1mm. The lug to lug will be 47mm and the overall thickness will be 13mm including the 2mm box sapphire crystal.

New Case Profile

The Trekker will feature new case architecture with an undercut bevel to the case, slightly changing the Trekker shape and allowing the watch to rock on the wrist with movement.

Technical Specs

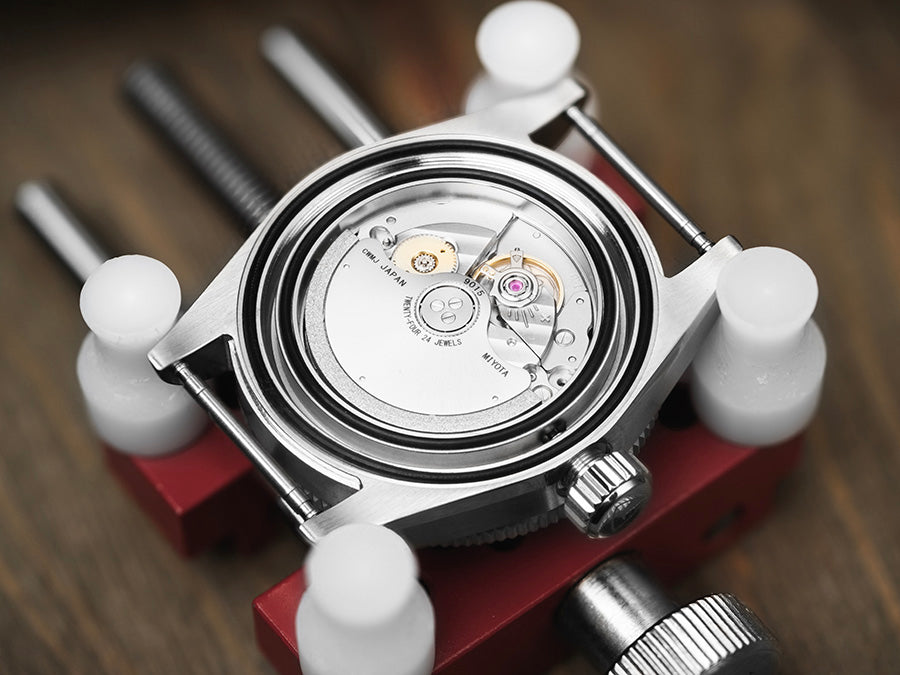

300 meters of water resistance in a 316L stainless steel case. The movement will be the Miyota 9000 series, both date and no date movements will be used.

DIALS

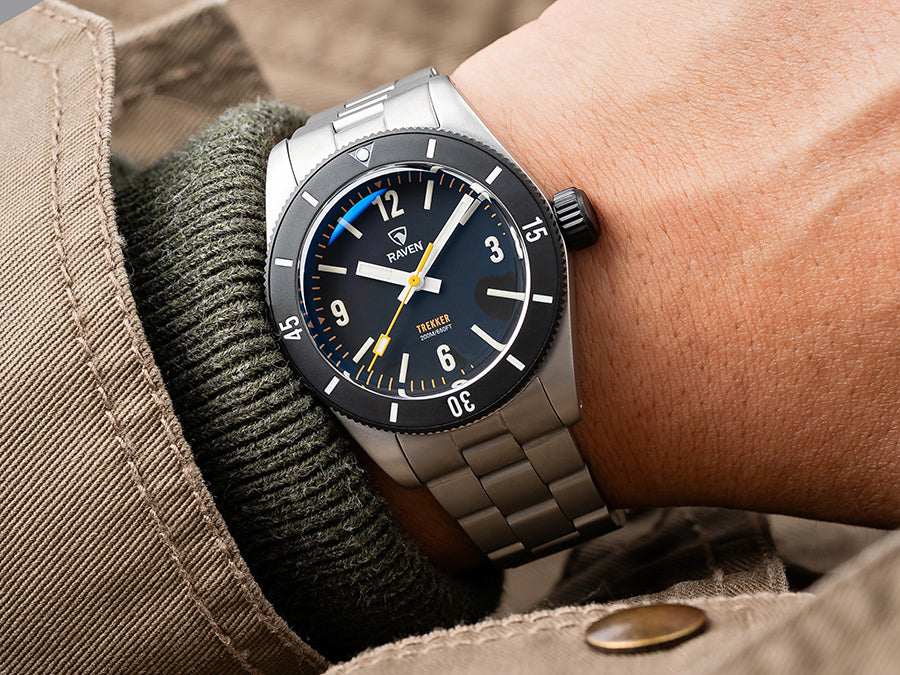

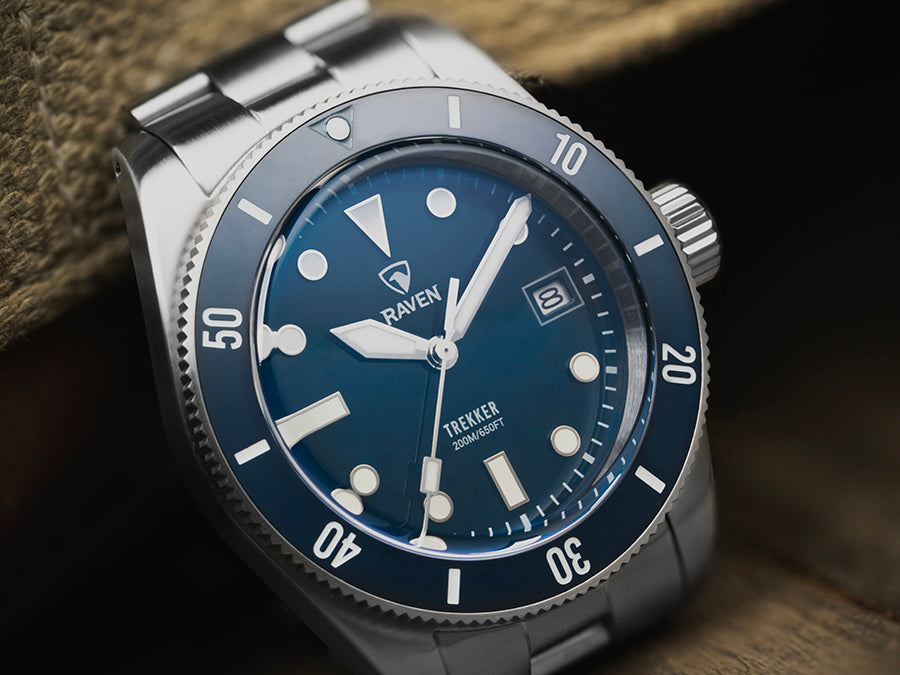

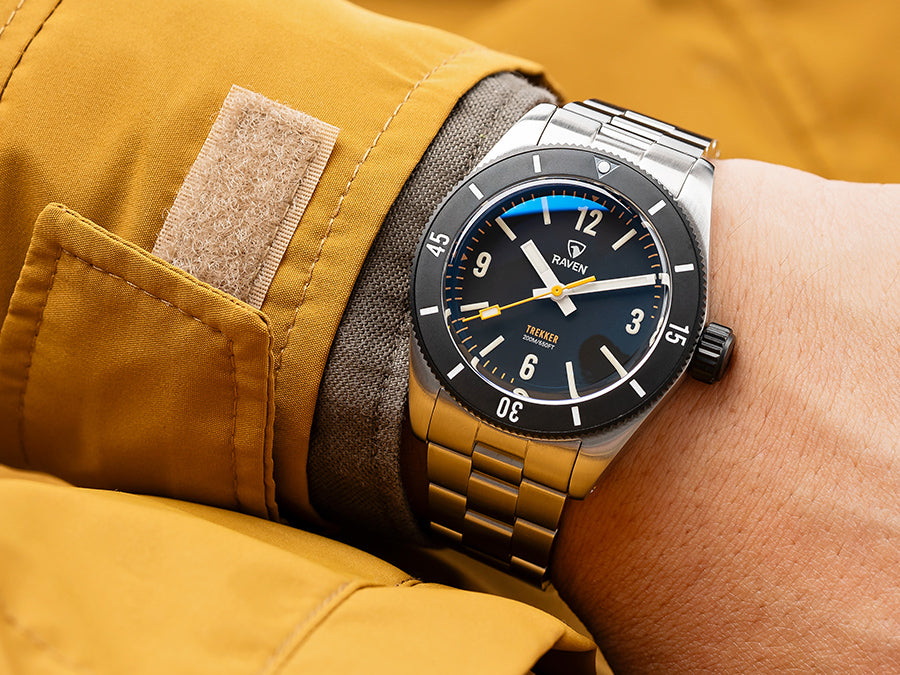

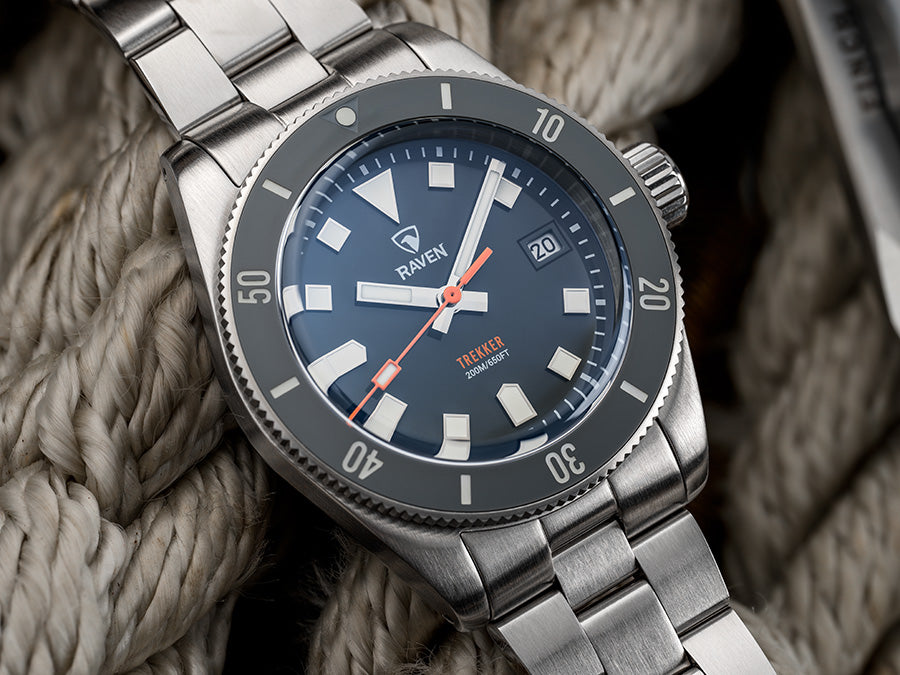

There will be two dial design options for the Trekker. The first is the traditional Trekker dial with printed Super Lumi-Nova (BGW-9 X1) . It will be glossy finish and available in black with yellow accents or blue with yellow accents and will not have a date window. The second dial option will be in the style of the Deep Tech with raise hour indices and a date at 6:00. These are the colors we are producing for the prototypes. All of these dials may or may not make it to final production.

Bezels

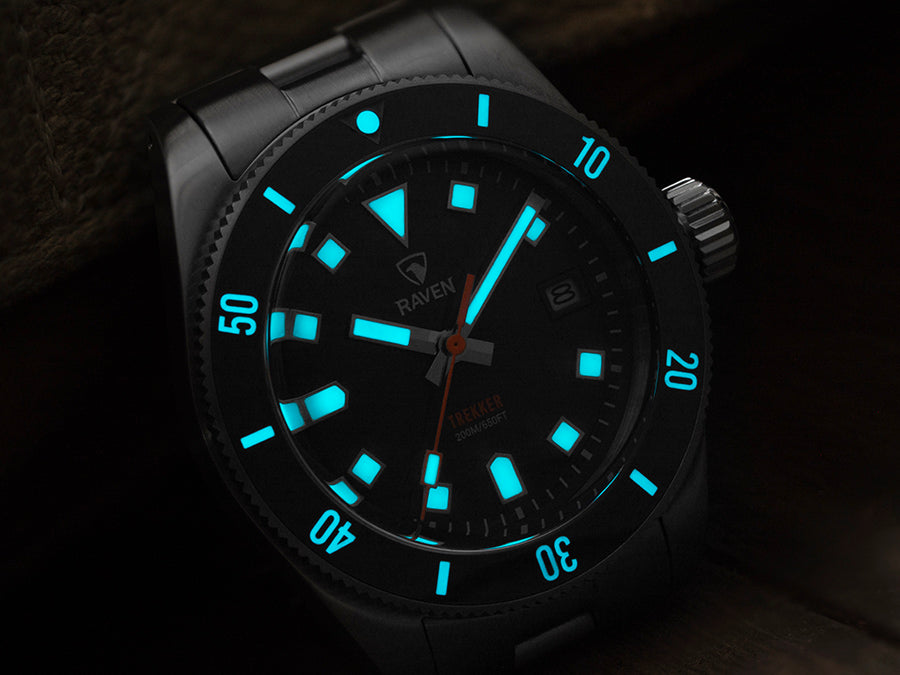

Two options for the Trekker bezel insert will include a gloss black ceramic or a brushed stainless steel. The black bezel will be fully lumed with BGW9 X1, and the steel bezel will be lumed at the 12:00 pip and matte black in the engraved marks. The bezel inserts are permanently installed when you purchase, and are not interchangeable.


Jubilee Bracelet

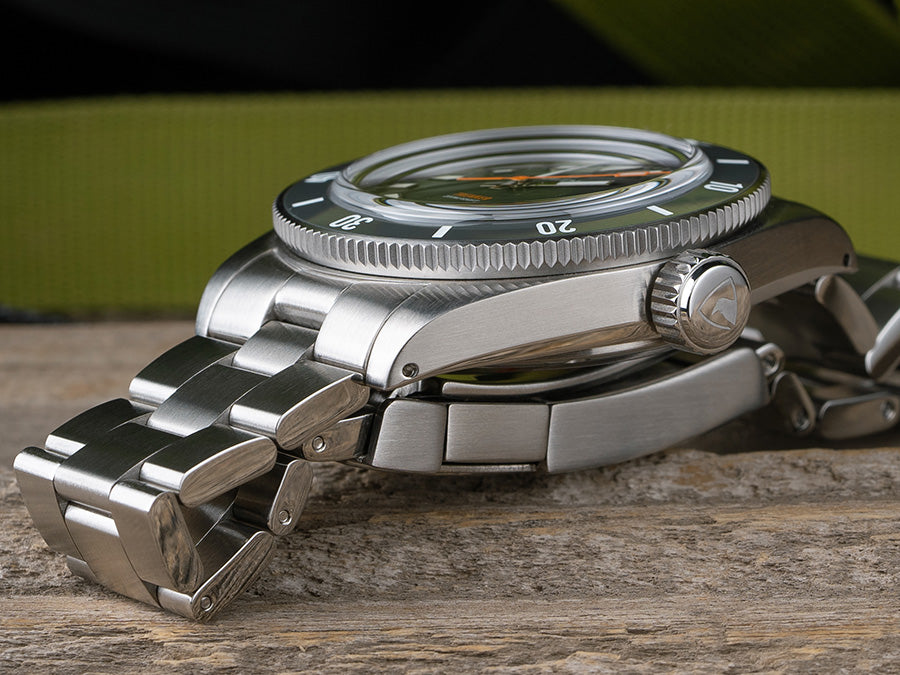

The original Trekker featured a jubilee style bracelet. This time we will make a few improvements to that original design including flatter links for a lower profile and less reflection, a taper from 20mm to 16mm, a simple 16mm low profile clasp, and end links that do not protrude from the tips of the lugs.

images for 3D printing

UPDATE: April 15, 2020 - Our next step is to print a 3D model of the new case, while the factory is working on the prototypes. We will post photos of the printed case when that is ready, then the prototypes when they arrive in a few months.

3D Printed Trekker

Printing the Trekker in 3D allows us to get a good idea of the overall size and proportions of the case, lug to lug, crystal,   bezel, crown, and how the different parts look and feel as one piece. Next we will have prototypes completed in June.


Timeline & Information

Trekker prototypes are in production at this time and should be ready sometime in June. Once those are ready we will begin the actual production. The Trekker should be finished and ready for delivery around August/September. We will adjust this information as we know more. Pre-order reservations with deposits will begin after we have the prototypes ready and can show the photos of the watches we are producing.
